Product Detail

Means of Transport: Ocean

Packing: As your request

Type: Welded

Application: platform, corridor, bridge,...

Production Capacity: 3000 Pieces Per Day

Delivery Date: 10 Days After Receiving The...

Brand Name: XINJIA

Material: Mild steel, Stainless steel...

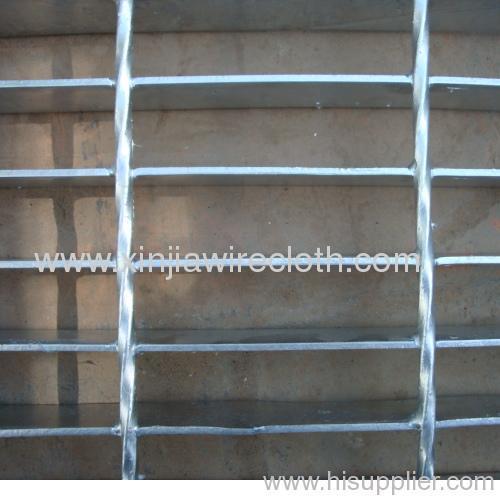

Steel grating is made of flat steel and bars by welding with certain distances. It goes through cutting, opening, edging and other processes.

plain: one of the most widely used gratings, available for flooring, sidewalk, dranage pit cover, stair tread.etc.

Our plain steel grating, is used in steel structure platforms, one of the most widely used steel gratings, kilns, sidewalks, well covers, drainage, and stair treads.

Features:
a) Type of bearing bar: 20 x 3 - 100 x 6
b) Pitch of bearing bar: 12. We
can design and manufacture standard steel grating, with a width of up to 1 meter
and in customized shapes per client requirements.5, 25, 15, 30, 34.3, 60, 40, etc.
c) Pitch of cross bar: 38, 76, 50, 100, etc.
d) Material: mild steel or stainless steel
e) Finish: hot dip galvanizing, painted, untreated
f) Steel grating standards:
1) China: YB / T4001 - 1998
2) USA: ANSI / NAAMM (MBG531 - )
3) UK: BS4592 - 1987
4) Australia: AS1657 - 1985
