Stainless Filtering Mesh from China manufacturer - Anping Xinjia Metal Products Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: Waterproof paper inside and...

Application: Filter

Brand Name: XINJIA

Production Capacity: 10000 Sq.m/day

Delivery Date: 10 Days After Receiving The...

Type: Woven

Material: Stainless steel wire 304 30...

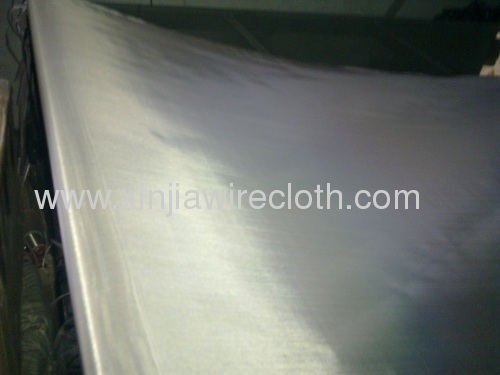

Stainless Steel Mesh for screening refers to the stainless steel wire mesh used for screening of solid particles,powers and dust,etc.

stainless steel filter screen

Description:Stainless steel filter screenrefers to the stainless steel wire cloth used for screening of solid perticles,powers and dust,etc.

Material:SUS304,304L 316,316L

Weave:Plain weave,twill weave, dutch weave,twill dutch weave ,reverse dutch weave.

Plain Weave Wire Cloth is the most commonly used and simplest wire cloth weave. Each weftwire is woven alternately over and under the warp wires through the cloth at 90 degree angles. It is a very common weave that can be produced quickly and economically. It has a wide range of applications.

Twilled Weave Wire Cloth is woven by passing each weft wire alternately over and under two warp wires. This type of weave is commercially woven in items ranging from 150-635 mesh .However, it is also available in course and mid range mesh combinations.

Dutch Weave Wire Cloth is woven with a larger wire diameter in the warp direction and a relatively smaller wire in the shute direction. This weave has great strength and is available in wide range of micron ranges. It is primarily used to filter a wide range of liquid and slurry products.

Twilled Dutch Weave Wire Cloth is a woven product that is capable of very fine filtration. Warp wires are passed alternately over and under two warp wires forming a fine mesh. It has a wide range of filtration applications for gas and liquid applications.

Reverse Dutch Weave Wire Cloth is a very strong woven product. This wire clothis ideal for making filter belts, and applications where fine filtration and great strength are required.
