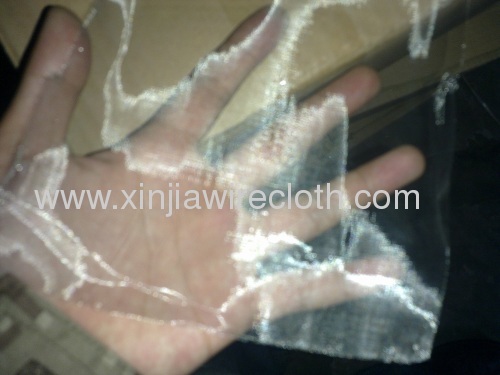

woven mesh screen for filter from China manufacturer - Anping Xinjia Metal Products Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: Waterproof paper inside and...

Application: Filter

Brand Name: XINJIA

Production Capacity: 10000 Sq.m/day

Delivery Date: 10 Days After Receiving The...

Type: Woven

Material: Stainless steel wire 304 30...

Stainless steel filter mesh is widely used in screening and separating in mine,coal,grain,medicine,ceramic,galss,food,scientific research.

Stainelss Steel WovenWire Mesh is also called Stainless Steel Wire Mesh ,Stainless Steel Wire Cloth.

Matrerial:SUS30 4304L 316 316L
Weave :dutch weave

Features:this kind of Stainelss Steel Wire Meshis specially used for micronic sieving .The min aperture of Stainless Steel Dutch Wire Mesh is 3micron

The following is the specifications of Stainelss Steel Dutch woven Wire Mesh for you to refer to:

Mesh/inch	Wire diameter (mm)	Reference values of particles passed (micron)
30/150	0.25/0.18	85
35/180	0.22/0.16	70
40/380	0.08/0.14	60
40/200	0.20/014	63
30*300	0.25*0.18	36
50/280	0.14/0.10	49
60/300	0.14/0.09	40
70/400	0.11/0.07	45
80*700	0.11*0.08	32
80*800	0.10*0.07	30
90*780	0.10*0.07	25
100*780	0.10*0.07	22
165/800	0.07/0.05	12
165*1400	0.07*0.04	14
180*1800	0.063*0.032	13
200*1400	0.07*0.04	12
200*1800	0.05*0.032	10
210*1900	0.045*0.03	10
250*2000	0.045*0.028	8
280*2200	0.036*0.026	7
300*2200	.036*0.026	6
325*2300	0.035*0.025	5
400*2800	0.03*0.018	3
